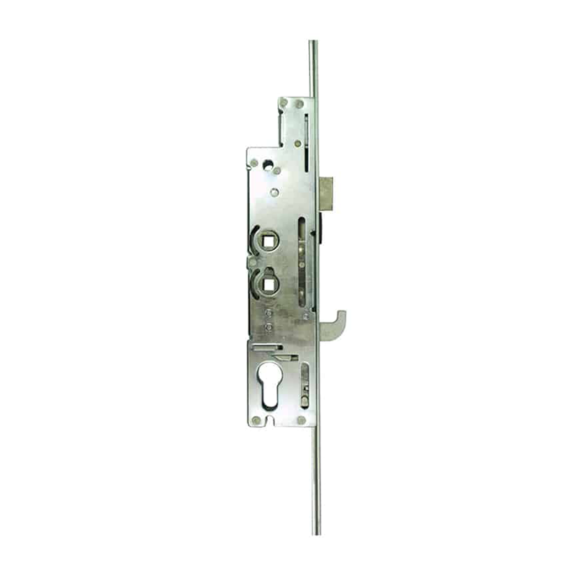

XL Multi Point Lock

• Designed for modern PVCu/uPVC door installations

• 35mm backset for standard fitting applications

• Available in multiple lock configurations – suitable for one-piece or individual keep sets

• Three opposing steel hooks for maximum security

• Top and bottom hooks with anti-lift bolts for enhanced protection

• Additional centre hook for extra reinforcement

• Integrated anti-drill plate for added resistance against attack

• PAS24 tested – compliant with recognised security standards

• Secured by Design – Police Preferred Specification approved

• Part of the XL Exodus Panic Exit system – CE marked

Roller & Compression Features

• Supplied with 5 rollers for optimum compression and smooth operation

• Additional roller cam options available (2 or 4 cams depending on configuration)

• Rollers positioned below the centre case for effortless locking action

• Compatible with shoot bolt systems for additional locking strength

• Adjustable cam keeps: XLK5R623 and XLK5L623 models for precise alignment

Spindle & Latch Options

• Dual spindle handle centres: 92-92mm and 92-62mm

• Available in dual, single, or split spindle configurations

• Easily reversible latch for left or right-hand door installation

• Latch hold-back snib located on the faceplate for convenience

Installation & Durability

• Extendable top and bottom sections for flexible installation

• Simple, hassle-free fitting process

• Silver passivated faceplates – 2200mm (H) x 16mm (W)

• 16mm square ends for a neat, contemporary finish

• Corrosion resistant – BSEN1670 Grade 4 (240-hour salt spray tested)

• 10-year mechanical guarantee for long-term reliability
